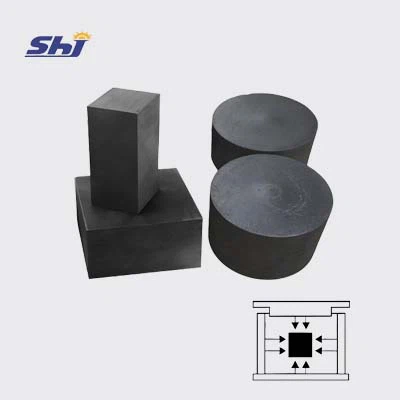

Isostatically Pressed Graphite
- Tsis sib xws Thermal Stability:Isostatically nias graphite muab cov cua sov zoo khaws cia thiab tiv thaiv thermal poob siab, ua rau nws yog cov khoom siv zoo tshaj plaws rau kev siv kub ntawm -, nrog rau cov khoom siv rau hauv cub tawg thiab cov chaw kub.
- Isotropic Performance hla txhua cov lus qhia:Cov txheej txheem txias isostatic nias ua kom cov qauv zoo li qub thiab sib xws hauv lub cev lub zog, tso cai rau isostatically nias graphite ua tau zoo nyob rau hauv txhua qhov kev qhia, txawm nyob hauv cov duab nyuaj.
- Chemical Inertness zoo heev:Resistant rau corrosion thiab tshuaj degradation, isostatically pressed graphite yog zoo tagnrho rau siv nyob rau hauv hnyav tshuaj ib puag ncig, xws li semiconductor manufacturing thiab aggressive industrial txheej txheem.
- Ntev -Lub Sij Hawm Durability thiab Hnav Resistance:Nrog rau qhov tshwj xeeb ruaj khov, cov khoom siv no tiv taus hnav, oxidation, thiab kev ntxhov siab ntawm cov neeg kho tshuab, ua rau nws qhov kev xaiv zoo rau kev ua haujlwm ntev - kev ua haujlwm ntev hauv kev xav tau kev lag luam.
- Customizable kom haum cov kev xav tau tshwj xeeb:Isostatically nias graphite tuaj yeem ua rau cov duab thiab qhov ntau thiab tsawg kom ua tau raws li cov kev cai tshwj xeeb ntawm ntau daim ntawv thov, los ntawm precision machining mus rau loj - nplai cov khoom lag luam.
Hauj lwm lawm
Isostatically Pressed Graphite rau siab -Kev Ua Haujlwm Zoo
Isostatically nias graphite(tseem hu uaisostatic graphite) yog cov khoom siv ua haujlwm siab - siv rau hauv ntau daim ntawv thov uas xav tau thermal stability, precision, thiab purity. Pebgraphite khoommuaj nyob rau hauv cov blocks, rods, thiab cov duab kev cai, nrog nplua nplej, siab ceev, thiab cov hmoov tshauv tsawg. Txawm hais tias koj nyob hauv semiconductor, automotive, lossis lub tshuab nqus tsev vacuum industries, pebisostatically nias graphitemuab kev ua tau zoo tshwj xeeb hauv cov xwm txheej hnyav.
Isostatically Pressed Graphite yog dab tsi?
Isostatically pressed graphite yog cov khoom ua haujlwm siab - tsim los ntawm compressing zoo carbon hmoov nyob rau hauv siab siab nyob rau hauv tag nrho cov lus qhia. Cov txheej txheem no, hu uatxias isostatic nias (CIP), ensures that the graphite maintains a uniform grain structure and high density, resulting in a material with exceptional thermal stability, electrical conductivity, and chemical resistance.
Lub ntsiab kom zoo dua ntawmisostatically nias graphitedhau tsoosgraphite cov ntaub ntawvyog nwsisotropic zog, txhais tau tias nws lub cev muaj zog, xws li thermal conductivity thiab mechanical zog, zoo ib yam nyob rau hauv tag nrho cov lus qhia. Qhov no ua rau nws yog ib qho khoom siv zoo tshaj plaws rau kev thov siv thoob plaws kev lag luam xws li kev tsim khoom semiconductor, lub tshuab nqus tsev rau cov khoom siv, cov khoom siv tsheb, thiab kev nruam nruam.
Ntsiab nta & Cov txiaj ntsig
- High Purity Carbon Cov ntsiab lus- Isostatically nias graphite yog tsim los ntawm siab - zoo, purified carbon, muab superior thermal kev ua tau zoo thiab tshuaj stability.
- Tsawg Thermal conductivity- Nws muab cov cua sov zoo thiab rwb thaiv tsev zoo, ua rau nws muaj txiaj ntsig zoo rau kev siv siab - kub thaum txo qis zog.
- Isotropic Properties- Tsis zoo li cov graphite ib txwm muaj, isostatically nias graphite ua haujlwm tsis tu ncua nyob rau hauv txhua qhov kev qhia, ua kom muaj kev ntseeg siab thoob plaws geometries nyuaj thiab ib puag ncig nyuaj.
- Thermal Shock Resistance- Nrog kev hloov pauv kub sai yam tsis muaj qhov tawg lossis deforming, ua kom lub neej ua haujlwm ntev hauv kev ua haujlwm siab -.
- Superior Durability- Cov khoom siv tiv taus hnav, oxidation, thiab tshuaj lom neeg degradation, ua rau nws zoo tagnrho rau kev siv tsis tu ncua hauv huab cua.
- Customizable Shapes thiab Size- Muaj nyob rau hauv ntau cov ntaub ntawv nrog rau cov blocks, rods, thiab kev cai machined qhov chaw, tailored kom tau raws li cov kev xav tau ntawm ntau yam kev lag luam daim ntaub ntawv.
- Corrosion Resistance- Kev kho deg xws li laminated graphite foil txhim kho cov khoom tiv thaiv rau cov tshuaj lom neeg thiab cov pa phem, ntxiv rau nws txoj sia thiab kev ntseeg siab hauv qhov chaw hnyav.
Technical Specifications
| Qib | Loj Qhov ntom |
Ntug dej Hardness |
Tshauv Cov ntsiab lus |
Compressive Lub zog |
Flexural Lub zog |
Kev tiv thaiv | Thermal Grain Conductivity Loj |
Loj Loj |
| ■IS-11 | 1.82 g / cm³ | 63 HSD | 50 PPM | 115 Mpa | 52 Mpa ua | 10 ~ 15 mQm | 120 W/mk | 8~10μm |
| ■IS-15 | 1.90 g / cm³ | 72 HSD | 50 PPM | 160 Mpa | 70 Mpa | 11~13μΩm | 110 ~ 120W / mk | 5μm |
| ■IS-14 | 1.85 g / cm³ | 68 HSD | 50 PPM | 120 Mpa | 62mpa ua | 11~13μΩm | 100 ~ 120W / mK | 7μm |
| ■IS-41 | 1.78g / cm³ | 76 HSD | 100 PPM | 122 MPa | 69mpa ua | 15.7μΩm | - | 10μm |
| ■IS-42 | 1.78g / cm³ | 65 HSD | 300 PPM | 113 Mpa | 57mpa ua | 12.5μΩm | - | 13μm |
| ■ IS-51 | 1.81 g / cm³ | 60 HSD | 50 PPM | 90mpa ua | 45 Mpa | 11~14μΩm | - | 12μm |
| ■IX-11 | 1.80g / cm3 | 85 HSD | 200 PPM | 180 Mpa | 90mpa ua | 25m qw | - | 4μm |
| ■IX-12 | 1.81 g / cm³ | 92 HSD | 200 PPM | 190 Mpa | 92mpa ua | 25μΩm | - | 4μm |
| ■ FM-12 | 1.75 g / cm³ | 42 HSD | 500 PPM | 65 Mpa | 38mpa ua | 8~11μΩm | 110 ~ 120W / mk | 13μm |
| ■ FM-13 | 1.85 g / cm³ | 48 HSD | 50 PPM | 85mpa ua | 46mpa ua | 8~10μΩm | 130 ~ 140W / mk | 13μm |
| ■ FM-22 | 1.80g / cm3 | 50 HSD | 1000 PPM | 75 Mpa ua | 38mpa ua | 12μΩm | - | 13μm |
Daim ntawv thov ntawm Isostatically Pressed Graphite
Lub tshuab nqus tsev rauv cua sov cov ntsiab lus
Isostatic graphite yog qhov zoo tagnrho rau siab -kub lub tshuab nqus tsev vacuum, siv nyob rau hauv cov khoom xws li cua sov, crucibles, thiab kub zones vim nws superior thermal conductivity thiab tsis kam mus oxidation.
Nruam Casting
Zoo tagnrho rau siv nyob rau hauvnruam casting txheej txheem,isostatic graphite yog siv los tsim cov hlau thiab lwm yam ntaub ntawv uas siab - graphite yog xav tau los tiv thaiv hnav thiab ua haujlwm kub heev.
Vim li cas thiaj xaiv SHJ CARBON
Muaj Daim Ntawv Thov thiab Kev Pabcuam Machining
SHJ CARBONmuaj ntau yam kev kho mob saum npoo av thiab kev xaiv kho kom haum raws li koj qhov kev ua haujlwm tshwj xeeb:
- Daim ntawv muaj: Blocks / Rods / Phaj / Custom Shapes
- Kev cai Machining: Peb cov isostatically nias graphite muaj rau kev cai machining kom tau raws li koj qhov kev tsim tshwj xeeb. Peb muab precision CNC machining rau nruj tolerances thiab zoo heev nto finishes.
- Quality Assurance: Tag nrho peb cov khoom raug tsim ua raws li ISO cov qauv nruj, ua kom ntseeg tau zoo thiab ua haujlwm zoo. Batch traceability thiab daim ntawv pov thawj ntawm kev ua raws (COA) muaj nyob rau ntawm kev thov.
- Ntim: Peb muab kev nyab xeeb thiab huv ntim ntim los tiv thaiv koj cov khoom los ntawm kev puas tsuaj thaum lub sij hawm xa khoom, xyuas kom lawv tuaj txog hauv qhov zoo.
25+ Xyoo ntawm Kev Lag Luam Kev Lag Luam
Cov kws tshaj lij pov thawj hauv cov pa roj carbon thiab graphite rwb thaiv tsev rau siab -tech manufacturing.
Trusted los ntawm Sab saum toj Manufacturers
Ntev - lub sijhawm xa khoom rau cov tuam txhab hluav taws xob, semiconductor, thiab hnub ci PV.
Custom Engineering Support
Kev tsim qauv tsim hauv cov laug cam, lub tog raj kheej, thiab cov duab 3D nyuaj kom phim cov ntsiab lus tseeb.
Advanced Production & Purification
Secondary siab -kub kev kho mob mus txog 2800℃rau tshwj xeeb purity.
Cov lus nug nquag
Dab tsi yog isostatically nias graphite, thiab nws txawv ntawm lwm hom graphite li cas?
Isostatically pressed graphite is created using Cold Isostatic Pressing (CIP), which produces a material with a uniform grain structure, high density, and improved performance in high-temperature applications. Nws feem ntau nyiam dua lwm hom graphite xws li extruded lossis vibration -cov graphite pwm rau nws cov khoom thermal thiab hluav taws xob zoo dua.
Dab tsi yog kev lag luam siv isostatic graphite?
Isostatic graphite yog dav siv nyob rau hauv kev lag luam xws li semiconductor manufacturing, automotive qhov chaw ntau lawm, lub tshuab nqus tsev rauv cua sov ntsiab, EDM, thiab nruam casting.
Kuv yuav xaiv cov qib zoo ntawm graphite li cas rau kuv daim ntawv thov?
Qib zoo nyob ntawm koj qhov kev thov tshwj xeeb, suav nrog cov yam ntxwv xws li purity, grain loj, ntom, thiab thermal conductivity. Peb tuaj yeem pab xaiv cov qib zoo tshaj plaws rau koj cov kev xav tau.
Kuv puas tuaj yeem tau txais kev cai machined graphite qhov chaw?
Yog lawm, peb muab CNC machining cov kev pabcuam los tsim cov duab kev cai, qhov chaw, thiab cov khoom siv los ntawmisostatically nias graphiteraws li koj cov specifications.
Lub sij hawm xa khoom rau isostatically nias graphite yog dab tsi?
Lub sij hawm txhuas sib txawv nyob ntawm qhov loj, qib, thiab qhov ntau ntawm qhov kev txiav txim. Thov hu rau peb rau ib qho kev tsocai tshwj xeeb raws li koj xav tau.
Nkag mus rau hauv Kov - Thov Kev Tso Cai
Npaj los txhim kho koj cov kev tswj xyuas thermal nrog kev ua haujlwm siab -carbon muaj rwb thaiv tsev? Hu rau hnub no rau cov kws tshaj lij cov lus qhia, kev daws teeb meem, thiab xa khoom sai.
Tiv tauj pebTam sim nolos yogThov ib daim Quote.
Cim npe nrov: Isostatically Pressed Graphite, isostatic graphite, isotropic graphite
