Kev lag luam-Trusted Medium Graphite
Qhov zoo tshaj plaws sib npaug ntawm kev ua tau zoo thiab tus nqi
Medium Graphite (nrog rau qhov loj me me ntawm0.5-1.0 hli) ua tiav qhov zoo tshaj plaws sib npaug ntawm kev ua tau zoo thiab tus nqi hauv kev lag luam. Nws khaws cov qauv tsim muaj zog txaus thaum muab tus nqi ntau dua - tus nqi zoo piv rau cov nplej zoo graphite, ua rau nws yog qhov kev xaiv zoo tshaj plaws rau kev lag luam xws limetallurgy, casting,thiabEDM (Electrical Discharge Machining).
Cov khoom no ua raws li "jack- ntawm-tag nrho- kev lag luam" hauv ntiaj teb kev lag luam - muaj peev xwm tiv taussiab -kub ib puag ncig, yooj yim rau tshuab, thiab nroghluav taws xob zoo heevthiabthermal conductivity. Txawm hais tias koj tab tom tsim cov pwm pwm, siab - qhov kub ntawm lub tshuab hluav taws xob, lossis EDM electrodes,medium grain graphitemuab ib txoj kev txhim khu kev qha.
Txhim khu kev qha Medium Graphite Blocks
48-teev Cov Kws Tshaj Lij Pab Txhawb - Kev sab laj pub dawb & daws teeb meem ceev
Tus nqi-Kev Tsim Nyog - Kev ntsuas ntau yam txo cov nqi, tsis muaj kev poob zoo
Specification ntawm Medium grained graphites
| Qib | Loj Qhov ntom |
Tshauv Cov ntsiab lus |
Compressive Lub zog |
Flexural Lub zog |
Kev tiv thaiv | Kub Kev coj ua |
C.T.E (RT-600 degree) |
Nplej Loj |
| MV-10 | 1.65 g / cm³ | 0.25% | 30 Mpa | 9mpa ua | 11 μΩm | - | - | 0.8mm ib |
| MV-13 | 1.73 g / cm³ | 1.20% | 35 Mpa | 15 Mpa | 8.5 μΩm | 130 W/mK | 3.3x10⁶ / degree | 0.8mm ib |
| MV-12 | 1.72 g / cm³ | 0.20% | 30 Mpa | 13 Mpa | 9 μΩm | 100 W / mK | 3.2x10 / degree | 0.8mm ib |
| MV-20 | 1.64 g / cm³ | 0.30% | 30 Mpa | 8.5 Mpa | 9.5 μΩm | 2.0 hli | ||
| ME-11 | 1.72 g / cm³ | 0.12% | 37MPa ua | 18 Mpa | 8~9 μΩm | - | 2.4x10⁶1 degree | 0.8mm ib |
| FE-11 | 1.70g / cm3 | 0.20% | - | 20 Mpa | 9 μΩm | - | 0.5 hli | |
| PEB-31 | 1.72 g / cm³ | 0.30% | - | 20 Mpa | 6 μΩm | - | - | 0.8mm ib |
| PEB-32 | 1.75 g / cm³ | 0.30% | - | 20 Mpa | 6 μΩm | - | - | 0.8mm ib |
Cov txiaj ntsig tseem ceeb ntawm Medium Graphite
1. Tus nqi tshwj xeeb-Kev ua tau zoo
Hauv feem ntau cov ntawv thov kev lag luam,medium grain graphitemuab kev ua tau zoo piv rauzoo grain graphitetab sis ntawm tus nqi sib tw ntau dua. Qhov no ua rau nws yog ib qho khoom siv zoo tshaj plaws rau kev lag luam txhawm rau tswj cov nqi tsim khoom yam tsis muaj kev cuam tshuam rau kev ua haujlwm.
2. Kev ua haujlwm ruaj khov
Tus qauv ntawmmedium grain graphite muaj zog thiab muaj zog, nrogzoo heev thermal shock kuj. Nws tuaj yeem tiv taus qhov hnyav tshaj plaws, suav nroghlau castingthiabsiab -kub sintering, ua kom lub neej ua haujlwm ntev txawm tias nyob rau hauv qhov xwm txheej hnyav.
3. Zoo heev machinability
Medium grain graphite yogmachinable heev, seb rau loj, complex Cheebtsam ua los ntawmkev vibration moldinglos yog ntev, cov khoom sib xws uas tsim los ntawm extrusion. Nws tuaj yeem ua tau yooj yim ua kom tau raws li cov kev xav tau tshwj xeeb ntawm koj daim ntawv thov, ua kom haum rauntau yam duabthiabqhov ntau thiab tsawgrau ntau hom kev lag luam.
Qhov nruab nrab Graphites
-

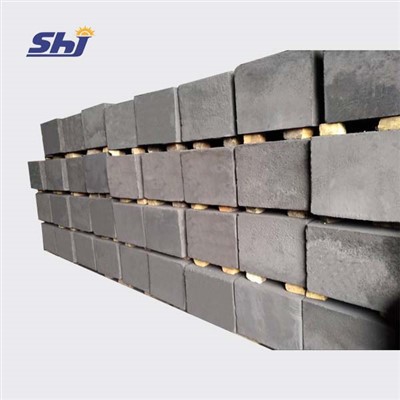

Nruab nrab Coarse Graphite Electrodes
Nruab nrab Coarse Graphite Electrodes Thaum nws los txog rau cov khoom siv hluav taws xob rau hluav
Ntxiv rau Kev Nug -
Nruab nrab Graphite Blocks & Customized Solutions|SHJ CARBON
Kev ua tau zoo sib npaug. - Nruab nrab grain graphite sib txuas ua ke siab ceev, ruaj khov, thiab
Ntxiv rau Kev Nug -
Medium Grain Artificial Graphite Block
Balanced Density thiab Grain Size. Medium grain graphite muaj qhov zoo sib npaug ntawm cov nplua
Ntxiv rau Kev Nug -
Customize koj High -Density Extruded Graphite Qws nrog tsawg kawg nkaus txiav txim kom muaj nuj
Ntxiv rau Kev Nug -
Nruab nrab -grained graphite nrog cov khoom piv rau HLM qib
Siab -Tub kub Reliability. - Kev ua haujlwm ruaj khov txog li 2000℃nrog lub zog thermal poob siab..
Ntxiv rau Kev Nug -
Medium Grain Extruded Graphite Block
Consistent Density thiab Structure. Ua los ntawm cov txheej txheem extrusion, cov blocks muaj cov
Ntxiv rau Kev Nug
Peb cov txheej txheem tsim khoom
Ntawm SHJ Carbon, peb siv ob txoj hauv kev tsim khoom tseem ceeb los ua cov khoom nruab nrab graphite blocks:kev vibration moldingthiabextrusion. Cov txheej txheem no tau xaiv tshwj xeeb rau lawv lub peev xwm los tsim cov khoom siab - cov khoom zoo tsim nyog rau ntau daim ntawv thov kev lag luam.
cov khoom siv thev naus laus zis
Vibration Moulded Graphite
Vibration molding is ideal for producing large, complex shapes with uniform density and excellent isotropic properties. Nws yog qhov mus- xaiv rau cov pwm loj, qhov twg cov qauv thiab kev ua tau zoo yog qhov tseem ceeb.
Extruded Graphite
Extrusion yog tshwj xeeb hauv kev tsim cov khoom ntev -ntev, xws li graphite rods thiab hlab, uas muaj zog axial siab. Txoj kev no yog qhov zoo tshaj plaws rau kev tsim cov khoom cua sov thiab lwm yam khoom siv uas yuav tsum muaj cov khoom siv txuas ntxiv mus.
SHJ- Cov khoom siv nruab nrab graphite
xwm txheej
peb engineer isostatic graphite kev daws teeb meem rau kev lag luam qhov twg kev ua tau zoo thiab kev ntseeg siab tseem ceeb tshaj plaws.
Nruam Casting Tuag
Medium grain graphite yog qhov tseem ceeb rau kev nruam casting tuag vim nws thermal shock kuj thiab lub zog. Nws ua kom du, ua haujlwm zoo hlau casting hauv qhov chaw hnyav.
Casting Sand Moulds & Pwm
Zoo tagnrho rau casting xuab zeb pwm, nruab nrab grain graphite muab durability thiab precision, enabling siab - zoo pwm tsim thiab tsis kam mus rau huab cua kub nyob rau hauv foundries.
EDM hluav taws xob
Nrog rau cov khoom siv hluav taws xob siab, cov khoom nruab nrab graphite yog cov khoom siv zoo tshaj plaws rau EDM electrodes, kom ntseeg tau tias kev ua haujlwm raug thiab siab - ua haujlwm tau zoo hauv kev ua haujlwm hluav taws xob.
Hlau Thaum tshav kub kub kho Fixture
Hauv kev kho cua sov hlau, nruab nrab grain graphite ua haujlwm siab -kub fixture, muab lub zog thiab kev tiv thaiv xav tau rau kev ua haujlwm zoo ib yam hauv cov txheej txheem kho cua sov.
Vim li cas thiaj xaiv SHJ-CARBON?
Nrog25 xyoo ntawm kev lag luam kev paube, SHJ Carbonnkag siab tob txog cov ntaub ntawv xav tau ntawm ntau lub sectors. Peb tsis tsuas yog muab cov khoom lag luam tshwj xeeb tab sis kuj pom zoo cov khoom siv zoo tshaj plaws raws li koj qhov kev ua haujlwm tshwj xeeb.
Peb tau cog lus tias yuav muab cov khoom zoo siab - cov khoom zoo thiab cov kev daws teeb meem uas haum rau koj cov kev xav tau ntawm daim ntawv thov, ua kom muaj kev ua tau zoo nyob thoob plaws lub rooj tsavxwm.
Tshawb nrhiav Peb Cov Khoom Siv Zoo Graphite Solutions
Yog tias koj tab tom nrhiav rau ntau dua precision thiab kev ua tau zoo, xav txog kev tshawb nrhiav pebGraphite zookhoom plig. Nrog rau qhov me me me me, nplua nplej graphite yog qhov zoo tagnrho rau cov ntawv thov uas xav tau cov ntsiab lus tshwj xeeb, xws li precision machining thiab siab -kev ua tau zoo EDM electrodes. Txawm hais tias nruab nrab grain graphite muaj tus nqi - zoo tshuav nyiaj li cas rau ntau qhov kev xav tau ntawm kev lag luam, cov nplej graphite zoo tshaj hauv ib puag ncig uas xav tau qhov tseeb thiab ua tau zoo. Kawm paub ntxiv txog yuav ua li cas nplua nplej graphite tuaj yeem ua tiav koj qhov project thiab xa cov txiaj ntsig zoo.
Cov lus nug nquag nug ntawm Isostatic carbon graphite
1.Dab tsi yog Medium Graphite?
+
-
Medium grain graphite yog ib hom hluavtaws graphite uas ntog ntawm cov nplej zoo thiab ntxhib nplej graphite raws li qhov loj me. Qhov loj me me yog li ntawm 0.5 hli mus rau 1.0 hli, muab qhov sib npaug zoo ntawm lub zog, ruaj khov, thiab pheej yig.
Cov khoom no feem ntau yog tsim los ntawm extrusion lossis vibration molding, cov txheej txheem uas pab ua kom muaj kev sib haum xeeb thiab kev ua haujlwm zoo ib yam thoob plaws ntau yam kev siv. Medium grain graphite yog qhov zoo tagnrho rau kev lag luam uas xav tau cov khoom siv txhim khu kev qha nrog cov thermal conductivity zoo, thermal shock resistance, thiab yooj yim ntawm machinability.
2. Qhov luaj li cas ntawm graphite yog dab tsi?
+
-
Lub grain loj ntawm graphite hais txog qhov loj ntawm tus kheej graphite hais nyob rau hauv cov khoom. Graphite yog cais raws li nws qhov loj me me rau hauv peb pawg tseem ceeb: cov nplej zoo, cov nplej nruab nrab, thiab cov nplej ntxhib.
Fine grain graphite feem ntau muaj qhov me me ntawm qhov tsawg dua 0.5mm thiab paub txog nws qhov tseeb thiab muaj peev xwm ua haujlwm siab - daim ntawv thov kev ua haujlwm.
Nruab nrab grain graphite, nrog ib tug particle loj xws li los ntawm 0.5mm mus rau 1.0mm, muaj ib tug sib npaug ntawm kev ua tau zoo thiab tus nqi, ua rau nws haum rau ntau yam kev lag luam siv.
Coarse grain graphite muaj qhov me me loj dua 1.0mm, muab cov khoom siv zoo heev tab sis tus nqi siab dua.
Medium grain graphite yog tshwj xeeb tshaj yog muaj nuj nqis rau nws cov kav ntev, thermal shock resistance, thiab nqi -effectiveness, ua rau nws zoo tagnrho rau EDM, foundry pwm, thiab siab - kub daim ntawv thov.
3. Dab tsi yog graphite nruab nrab?
+
-
Graphite nruab nrab feem ntau yog hais txog hom graphite nrog qhov loj me me uas poob ntawm cov nplua thiab ntxhib nplej -feem ntau nruab nrab graphite. Nws cuam tshuam qhov sib npaug ntawm lub zog thiab qhov tseeb ntawm cov nplej zoo graphite thiab tus nqi -kev ua tau zoo ntawm coarse grain graphite. Qhov nruab nrab grain loj no (feem ntau ntawm 0.5mm mus rau 1.0mm) yog dav siv nyob rau hauv industrial daim ntaub ntawv qhov twg kev ua tau zoo thiab pheej yig yog ob qho tib si kev txiav txim siab tseem ceeb.
Medium grain graphite yog qhov zoo tagnrho rau cov ntawv thov xws li pwm, cov khoom siv hluav taws xob, thiab cov khoom siv hluav taws xob vim nws qhov kev ua tau zoo, kev ua haujlwm zoo heev, thiab thermal conductivity.
4.Peb hom graphite yog dab tsi?
+
-
Graphite tuaj yeem muab faib ua peb hom tseem ceeb, txhua tus nrog nws cov khoom tshwj xeeb thiab kev siv:
Ntuj Graphite: Muab tau los ntawm mining thiab ua kom tshem tawm impurities. Nws yog tsuas yog siv nyob rau hauv daim ntawv thov xws li lubricants, roj teeb, thiab cov ntaub ntawv refractory.
Synthetic Graphite: Ua los ntawm cov txheej txheem graphitization ntawm cov ntaub ntawv carbon ntawm qhov kub siab heev. Nws yog dav siv nyob rau hauv daim ntawv thov uas yuav tsum tau muaj meej tswj cov khoom, xws li EDM, foundries, thiab roj teeb anodes.
Amorphous Graphite: Ib hom ntuj graphite nrog cov qauv tsis zoo. Nws feem ntau yog siv rau hauv cov xim, xaum, thiab lwm yam khoom uas xav tau tsawg dua qhov tseeb tab sis tseem tau txais txiaj ntsig los ntawm cov khoom tshwj xeeb ntawm graphite.
Ntawm cov no, nruab nrab grain hluavtaws graphite feem ntau yog siv rau hauv kev lag luam daim ntaub ntawv uas yuav tsum tau uniform ntom, thermal stability, thiab zoo heev hluav taws xob conductivity.
5.Dab tsi yog qib ntawm graphite?
+
-
Graphite tau muab faib ua ntau qib, txhua qhov muab cov khoom tshwj xeeb haum rau cov kev xav tau sib txawv. Cov qib tseem ceeb ntawm graphite muaj xws li:
Graphite Graphite: Paub txog nws qhov kev ua haujlwm siab thiab muaj peev xwm ua haujlwm siab -kev ua haujlwm zoo. Nws feem ntau yog siv rau hauv daim ntawv thov uas yuav tsum muaj siab - cov ntaub ntawv ceev, xws li EDM electrodes thiab precision casting.
Medium Graphite: Qib no muaj kev sib npaug ntawm kev ua tau zoo thiab tus nqi -kev ua tau zoo. Nws versatility ua rau nws haum rau ib tug ntau yam ntawm daim ntaub ntawv, xws li foundry pwm, siab -kub rauv Cheebtsam, thiab electrodes.
Coarse Graphite: Qhov zoo tshaj plaws haum rau cov ntawv thov uas xav tau lub zog txhua yam thiab thermal stability. Nws feem ntau yog siv rau hauv cov pwm loj thiab siab - cov khoom siv kev ntxhov siab.
Tshwj xeeb Graphite: suav nrog cov qhab nia customized rau cov kev siv tshwj xeeb, xws li siab -purity graphite rau semiconductor manufacturing lossis siab - conductivity graphite rau cov khoom siv hluav taws xob.
SHJ Carbon tshwj xeeb hauv nruab nrab grain graphite, muab cov kev daws teeb meem uas cuam tshuam qhov sib npaug ntawm tus nqi thiab kev ua haujlwm, tshwj xeeb tshaj yog nyob rau hauv casting, EDM, thiab cov ntawv siv rauv.
